Productinformatie
Processor |
Processorfabrikant |
AMD |
Processor socket |
(AMD) AM4 |
Compatibele processors |
3rd and 2nd Gen AMD Ryzen/ 3rd and 2nd Gen AMD Ryzen with Radeon Vega Graphics processors. |
Geheugen |
Ondersteunde geheugen types |
DDR4-SDRAM |
Aantal geheugenslots |
4 |
Geheugen kanaal |
Duaal |
Supported memory clock speeds |
1866/ 2133/ 2400/ 2667/2933(OC)/ 3200(OC)/ 3600(OC)/ 4000+(OC) |
Maximum intern geheugen |
128 GB |
Grafisch |
Ingebouwde grafische adapter |
Ja |
Interne aansluitingen |
Aantal SATA III connectors |
6 |
EPS power connector (8-pin) |
Ja |

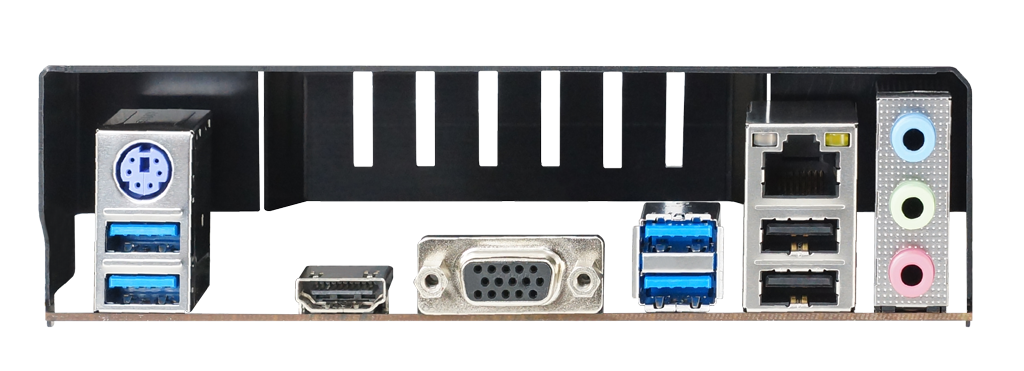

Aansluitingen achterzijde |
Aantal USB 2.0-poorten |
2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A |
4 |
Aantal Ethernet LAN (RJ-45)-poorten |
1 |
PS/2 poort(en) |
1 |
VGA (D-Sub)poort(en) |
1 |
Aantal HDMI-poorten |
1 |
Netwerk |
Ethernet interface type |
1 Gbit |
LAN controller |
Realtek RTL8111H |
Kenmerken |
Moederbord form factor |
ATX |
Chipset moederbord |
AMD X570 |
Audiochip |
Realtek ALC887 |
Audio-uitgangskanalen |
7.1 kanalen |
Uitbreidingsmodules |
PCI Express x1 (Gen 3.x) slots |
2 |
PCI Express x16 (Gen 3.x) slots |
1 |
Aantal M.2 (M) slots |
1 |
PCI Express x16 (Gen 4.x) slots |
1 |
Gewicht en omvang |
Breedte |
243 mm |
Hoogte |
30,5 cm |
