Artikelnummer 63427
Fabrikantnummer RNUC11PAHI30Z02
Fabrieksgarantie Bring in Service (36 maanden)

Productinformatie

Processor
Type processor
Ja
Processorfabrikant
Intel
Processorfamilie
Intel® Core™ i3
Processorgeneratie
Intel® 11de generatie Core™ i3
Processormodel
i3-1115G4
Aantal processorkernen
2
Processor aantal threads
4
Processor lithografie
10 nm
Maximale turbofrequentie van processor
4,1 GHz
Processor cache
6 MB
Thermal Design Power (TDP)
40 W
Geheugenbandbreedte ondersteund door de processor ( max)
51,2 GB/s
CPU configuratie (max)
1
Geheugen
Geheugen slots type
SO-DIMM
Aantal geheugenslots
2
Aantal DIMM sloten
2
Maximum intern geheugen
64 GB
Supported memory clock speeds
3200 MHz
Ondersteunde geheugen types
DDR4-SDRAM
Geheugen kanaal
Dual-channel
Geheugen bandbreedte (max)
51,2 GB/s
Verwijderbare sleuf voor geheugenkaart
SDXC with UHS-II support
ECC
Nee
Opslagmedia
Ondersteunde types opslag-drives
HDD & SSD
Opslagschijf afmetingen ondersteund
M.2 + 2.5"
SSD-vormfactor
M.2
Aantal storage drives ondersteund
2
Geheugen
Intern geheugentype
DDR4-SDRAM
Grafisch
Ingebouwde grafische adapter
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel® UHD Graphics
Aantal displays ondersteund
4
Netwerk
Ethernet LAN
Ja
Wifi
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
WLAN-controller-model
Intel Wi-Fi 6 AX201
LAN controller
Intel I225-V
Bluetooth
Ja
Poorten & interfaces
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
3
Aantal HDMI-poorten
1
Mini HDMI ports kwantiteit
0
HDMI versie
2.0b
VGA (D-Sub)poort(en)
0
Aantal DisplayPorts
1
Mini DisplayPort kwantiteit
1
DisplayPort versie
1.4
Aantal Ethernet LAN (RJ-45)-poorten
1
Aantal SATA III connectors
2
Aantal USB-aansluitingen
7
Aantal Thunderbolt 3-poorten
2
M.2-kaartsleuf (opslag)
2280
Aansluiting voor netstroomadapter
Ja
Uitbreidingsmodules
PCI Express slots versie
4.0
Design
Type behuizing
UCFF
Kleur van het product
Zwart
LED-indicatoren
Ja
Type product
Mini PC barebone
Status
Launched
Prestatie
Moederbord form factor
UCFF
Aantal ondersteunde processoren
1
Trusted Platform Module (TPM)
Nee
Audio-uitgangskanalen
7.1 kanalen
Consumer infrared Rx-sensor
Ja
Ondersteunt Windows
Windows 11 x64, Windows 10 x64
Compatibele besturingssystemen
Windows 10, 64-bit*
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
Processor speciale functies
Intel® vPro™ Platform Eligibility
Nee
Intel® High Definition Audio (Intel® HD Audio)
Ja
Ingebouwde opties beschikbaar
Nee
Intel® Rapid Storage Technology
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Idle States
Ja
Intel® Trusted Execution Technology
Nee
Intel® Stable Image Platform Program (SIPP)
Nee
Intel® Platform Trust Technology (Intel® PTT)
Ja
Intel® Virtualization Technology (VT-x)
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84713000
Energie
Soort voeding
Externe AC-adapter
AC-adapter, uitgangsspanning
19 V
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 35 °C
Temperatuur bij opslag
-20 - 60 °C
Gewicht en omvang
Breedte
117 mm
Diepte
112 mm
Hoogte
51 mm
Inhoud van de verpakking
Inclusief netsnoer
Ja
Overige specificaties
Extra headers
CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
Aantal SATA-aansluitingen
2
HDD omvang
2.5"
DC voltage input
19 V
Lanceringsdatum
Q2'22

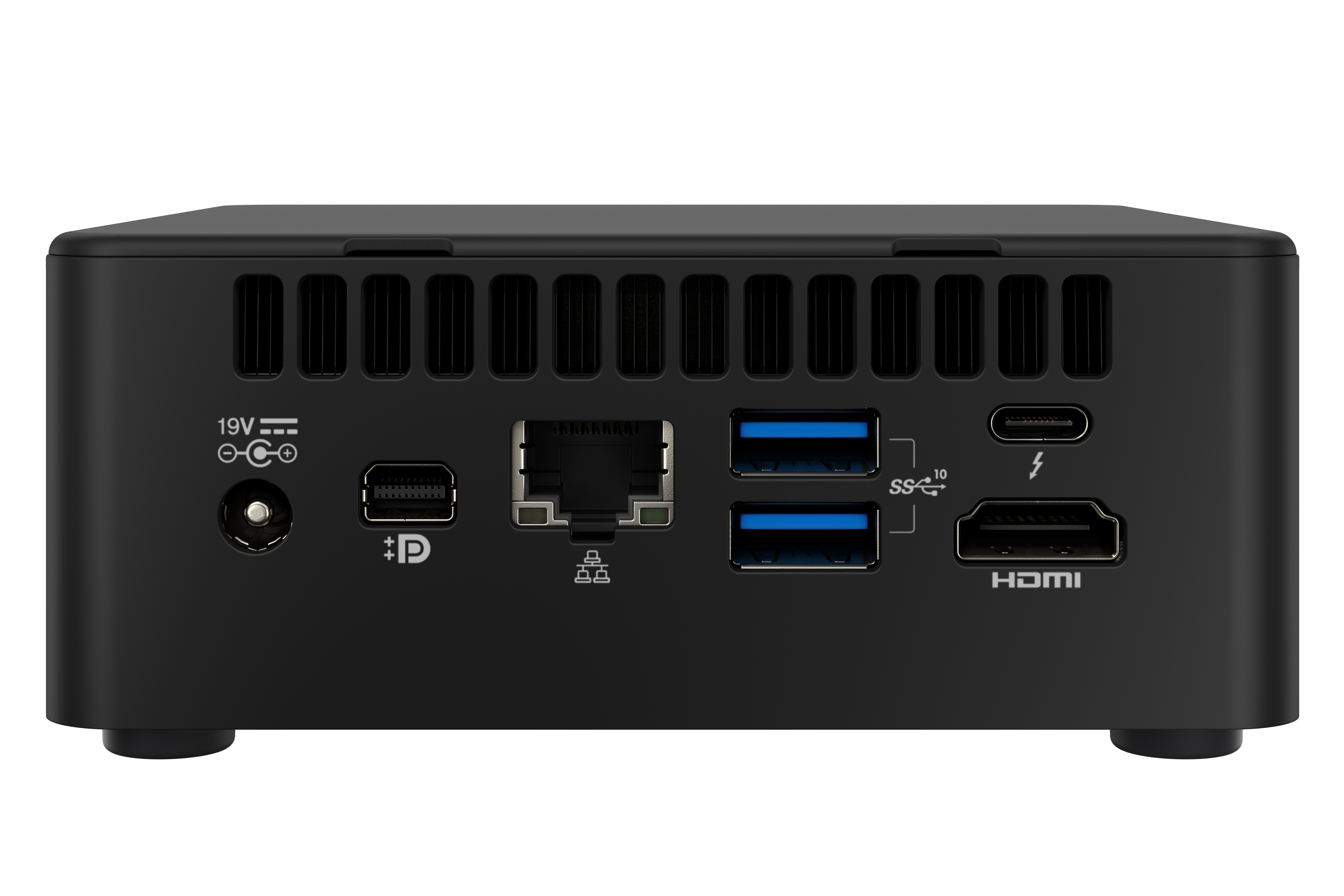

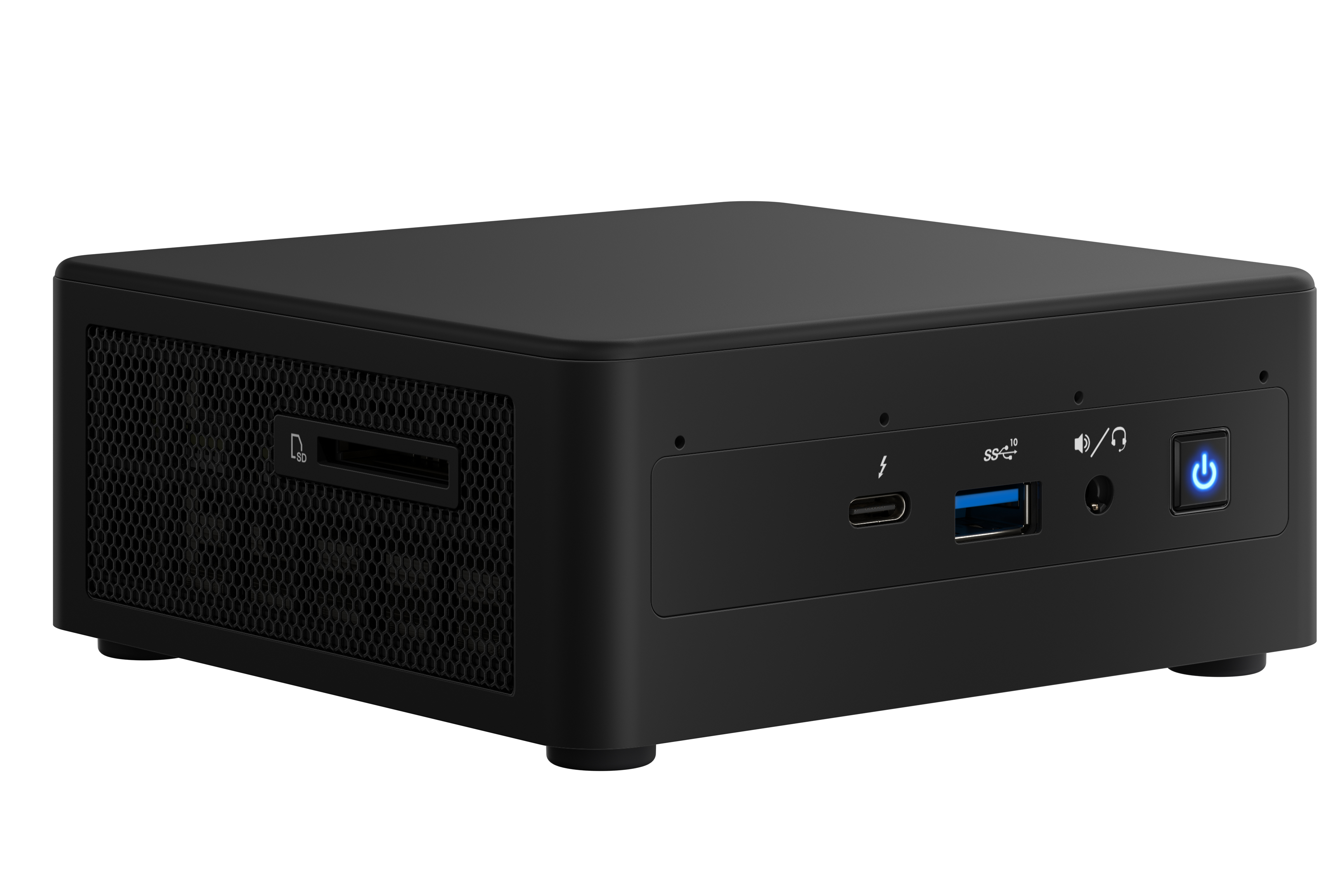

Productafbeelding Intel Panther Canyon Lite
