Productinformatie
Processor |
Type processor |
Ja |
Processorfabrikant |
Intel |
Processorfamilie |
Intel® Celeron® |
Processormodel |
Celeron N5105 |
Frequentie van processor |
2 GHz |
Aantal processorkernen |
4 |
Processor aantal threads |
4 |
Processor lithografie |
10 nm |
Maximale turbofrequentie van processor |
2,9 GHz |
Processor cache |
4 MB |
L3 cache |
4 MB |
Thermal Design Power (TDP) |
15 W |
CPU configuratie (max) |
1 |
Geheugen |
Geheugen slots type |
SO-DIMM |
Aantal geheugenslots |
2 |
Aantal DIMM sloten |
2 |
Maximum intern geheugen |
32 GB |
Supported memory clock speeds |
2933 MHz |
Ondersteunde geheugen types |
DDR4-SDRAM |
Geheugen kanaal |
Dual-channel |
Geheugen voltage |
1.2 V |
ECC |
Nee |
Non-ECC |
Ja |
Opslagmedia |
Ondersteunde types opslag-drives |
SSD |
Opslagschijf afmetingen ondersteund |
M.2 |
SSD-vormfactor |
M.2 |
Aantal storage drives ondersteund |
1 |
Geheugen |
Intern geheugentype |
DDR4-SDRAM |
Grafisch |
Ingebouwde grafische adapter |
Ja |
Grafische adapter-familie |
Intel |
On-board graphics adapter model |
Intel® UHD Graphics |
Aantal displays ondersteund |
2 |
Audio |
Ingebouwde luidsprekers |
Nee |
Netwerk |
Ethernet LAN |
Ja |
Wifi |
Ja |
Wifi-standaard |
Wi-Fi 5 (802.11ac) |
Wi-Fi-standaarden |
Wi-Fi 5 (802.11ac) |
WLAN-controller-model |
Intel Dual Band Wireless-AC 9462 |
Bluetooth |
Ja |
Bluetooth-versie |
5.0 |

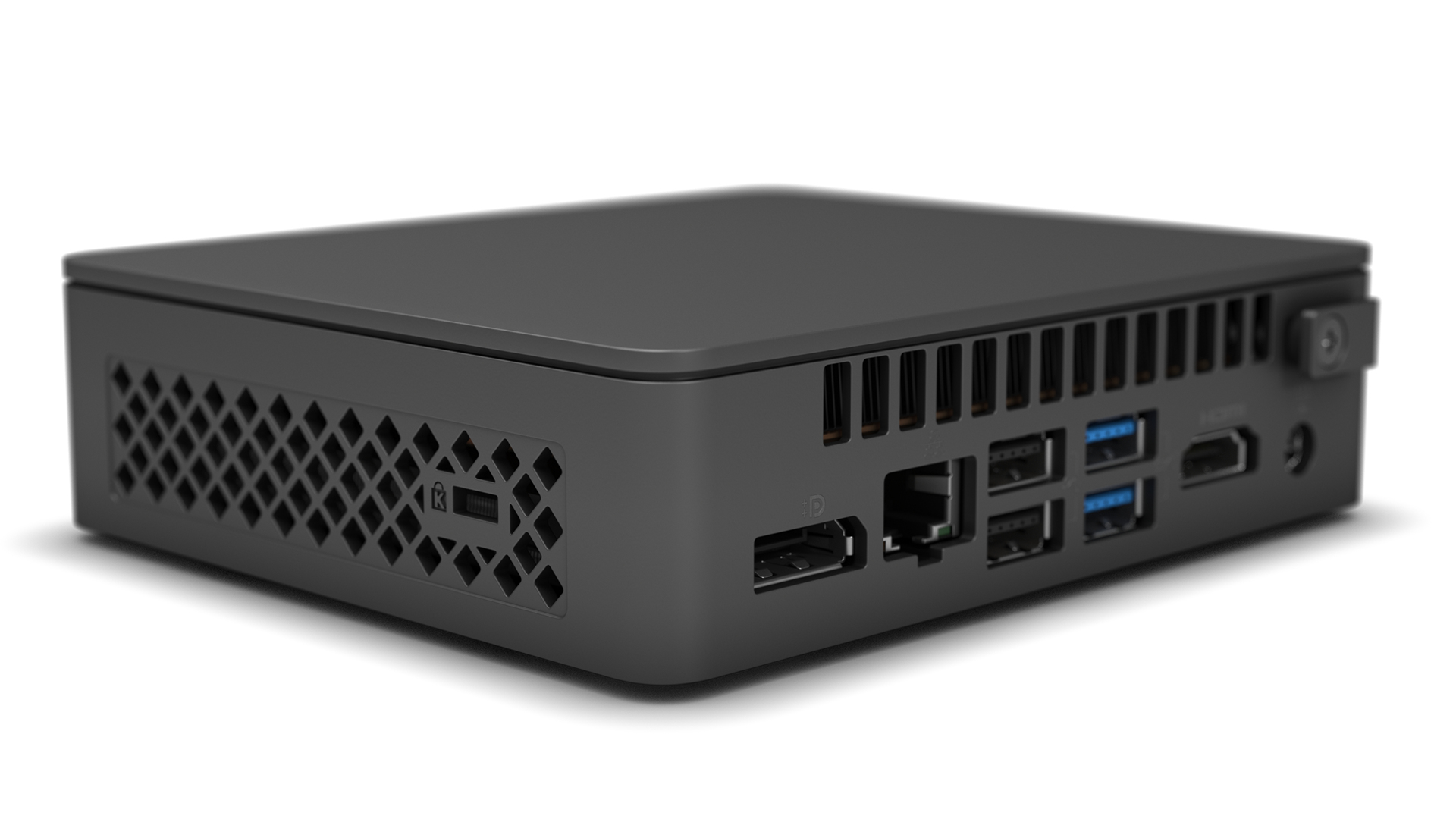

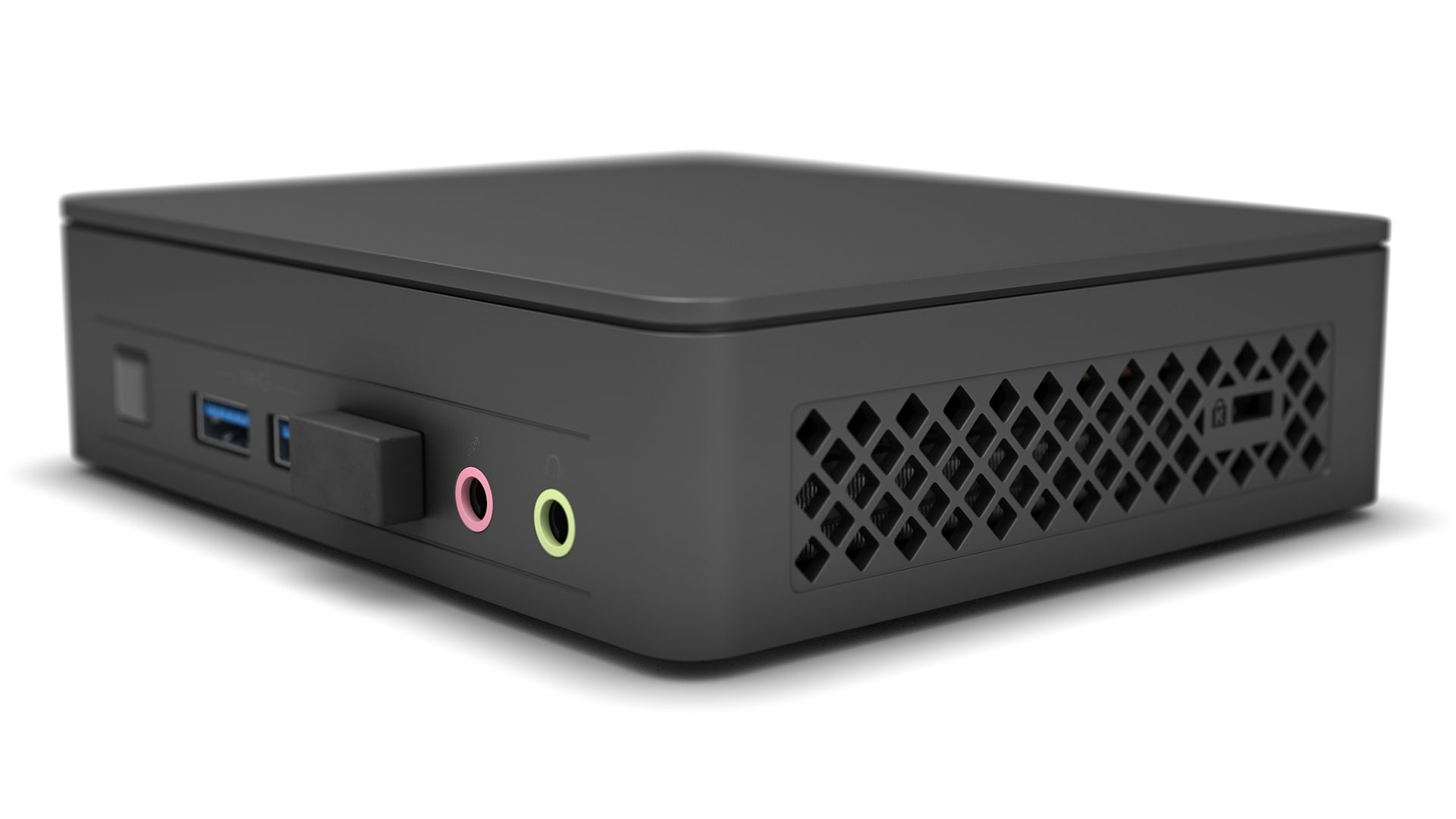

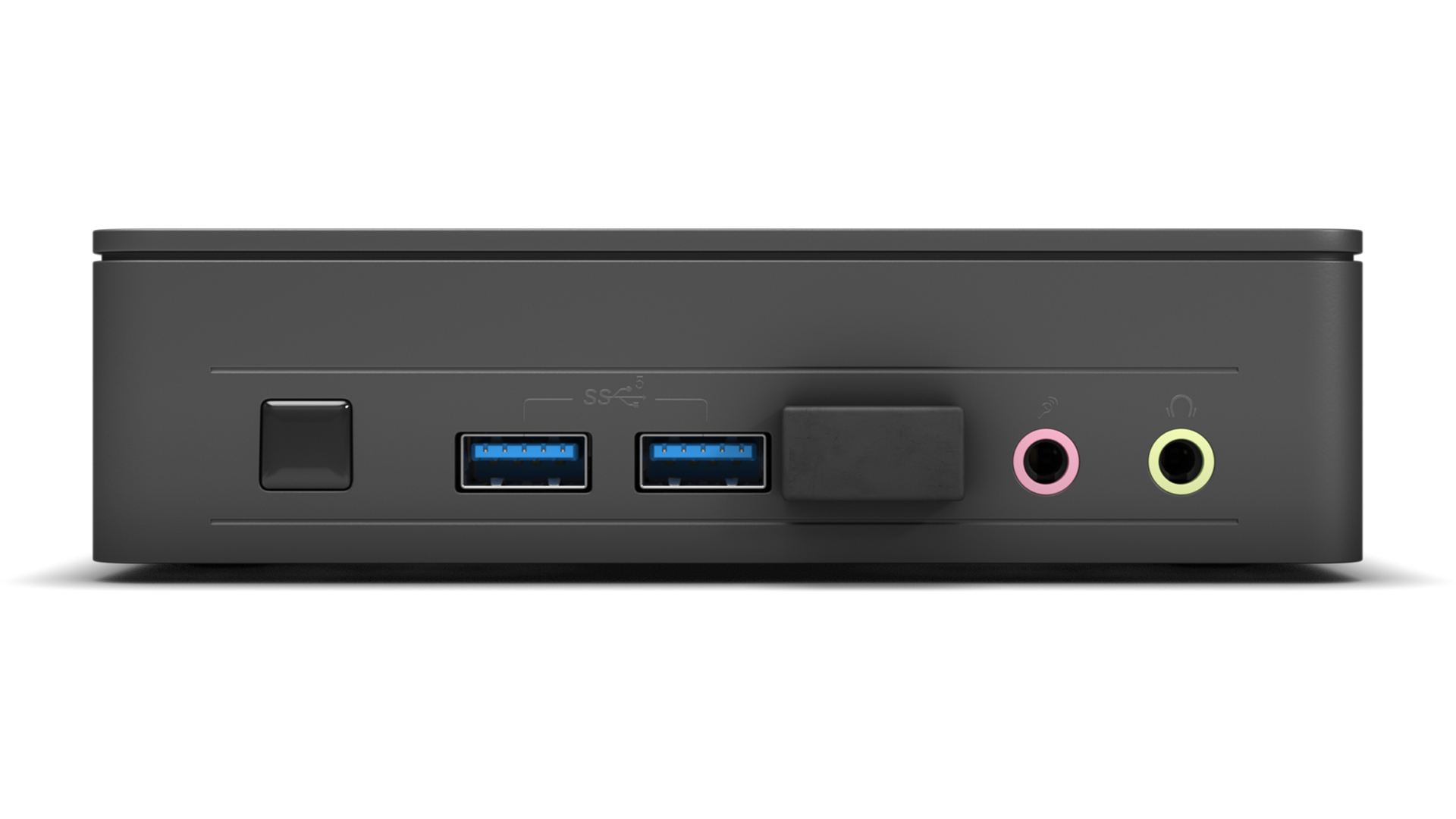

Poorten & interfaces |
Aantal USB 2.0-poorten |
2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A |
2 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A |
2 |
Aantal HDMI-poorten |
1 |
Mini HDMI ports kwantiteit |
0 |
HDMI versie |
2.0b |
VGA (D-Sub)poort(en) |
0 |
Aantal DisplayPorts |
1 |
Mini DisplayPort kwantiteit |
0 |
DisplayPort versie |
1.4 |
Microfoon, line-in ingang |
Ja |
Hoofdtelefoonuitgangen |
1 |
Aantal Ethernet LAN (RJ-45)-poorten |
1 |
M.2 kaartslot (draadloos) |
1 |
Aantal USB-aansluitingen |
6 |
M.2-kaartsleuf (opslag) |
1 |
Uitbreidingsmodules |
PCI Express slots versie |
3.0 |
Design |
Type behuizing |
UCFF |
Kleur van het product |
Zwart |
Type koeling |
Actief |
Aan/uitschakelaar |
Ja |
LED-indicatoren |
Ja |
Materiaal behuizing |
Metaal, Kunststof |
Bevestigingsmogelijkheid voor kabelslot |
Ja |
Kabelslot sleuf type |
Kensington |
Type product |
Mini PC barebone |
Status |
Launched |
Productserie |
Intel® NUC Kit with Intel® Celeron® Processors |
Prestatie |
Ondersteunt Windows |
Windows 11, Windows 10 |
Ondersteunt Linux |
Ja |
Compatibele besturingssystemen |
Windows 10*|Linux* |
Commodity Classification Automated Tracking System (CCATS) |
G157815L2 |
Export Control Classification Number (ECCN) |
5A992C |
Processor speciale functies |
Intel® vPro™ Platform Eligibility |
Nee |
Intel® High Definition Audio (Intel® HD Audio) |
Ja |
Intel® AES New Instructions (Intel® AES-NI) |
Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) |
Ja |
Intel® VT-x with Extended Page Tables (EPT) |
Ja |
Intel® 64 |
Ja |
Idle States |
Ja |
Enhanced Intel SpeedStep Technology |
Ja |
Intel® Trusted Execution Technology |
Nee |
Intel® Optane™ Memory Ready |
Ja |
Intel® Platform Trust Technology (Intel® PTT) |
Ja |
Intel® Virtualization Technology (VT-x) |
Ja |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) |
84713000 |
Energie |
Soort voeding |
Externe AC-adapter |
Netvoeding |
65 W |
Aantal voedingen |
1 |
AC-adapter, uitgangsspanning |
19 V |
Gewicht en omvang |
Breedte |
135 mm |
Diepte |
115 mm |
Hoogte |
36 mm |
Inhoud van de verpakking |
Inclusief netsnoer |
Ja |
Inclusief AC-adapter |
Ja |
Overige specificaties |
DC voltage input |
19 V |
Lanceringsdatum |
Q1'22 |
